TS 1-5-10-30
1-5-10-30 daN welding head
Cost-effective, accurate and robust, TS 1 to 30 daN heads are ideal for single, low-thickness welds.
This range of heads enables microswitch control of the trigger force via a graduated knob and a tared spring.
Guide rails and pads.
Electrode holder adjustable in three dimensions.
Lower arm removable to enable installation of a workpiece holder.
Trigger force controlled via graduated knob and tared spring.
Triggered by microswitch once the set force is reached.
Direct current connection to the electrode holder.
Supplied with air regulator.
Solenoid valve and proportional valve (optional).
|
|
|
|
|
|
|---|---|---|---|---|---|

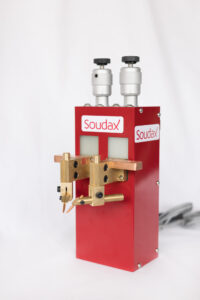

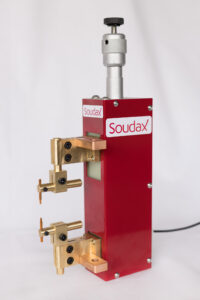

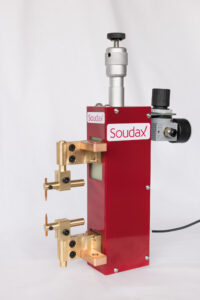

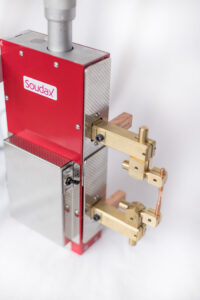

| Name | TSA 30 Double movment | TSA | TSA D | TSM | TSM D |
| Max. force | 30 daN | 1 / 5 / 10 daN | 1 / 5 / 10 daN | 1 / 5 / 10 daN | 1 / 5 / 10 daN |
| Stroke | - | 22 mm | 22 mm | 22 mm | 22 mm |
| Overhang | - | 80 to 110 mm | 80 to 110 mm | 80 to 110 mm | 80 to 110 mm |
| Pedal type | Pneumatic or Eletrical (with EV kit) | Pneumatic or electric (with solenoid valve kit) | Pneumatic or electric (with solenoid valve kit) | Cable or Rocker | Rocker |
| Overall dimensions : length x width x height (mm) | 230 x 50 x434 | 140 × 70 × 260 | 140 × 70 × 260 | 140 × 70 × 260 | 140 × 70 × 260 |
| Weight (kg) | 6.6 | 2.7 | 6 | 2.7 | 4 |
Non contractual photographies
